| SATURATION SYSTEM DEDE-SAT-01 |
|
|
We, Dunnimaa Engineers & Divers Enterprises (P) Ltd are well equipped with latest and best inclass diving equipments and which are maintained at company workshop as per IMCA D-018 and
IMCA D-035 guidance notes.
Detail list of equipments inside the containers are described below:
| MAIN PARTICULARS |
| Owner |
DEDEPL |
| Year Built: |
2004 |
| Refurbished by; |
UTS |
| Classification standard: |
IMCA D 024 |
| Depth rating: |
200 bar (200 m) |
| DIVE & SATURATION CONTROL UNIT |
| Dive / Bell Control Panels |
| Diver Gas Reclaim Control Panel |
| Bell Services Controls (Electrics,Communications, Hot Water) Thru |
| Water Communications |
| CO2 & O2 Analyzers for Bell & Diver Breathing Gas |
| Diver & Bell Internal Video Monitoring & Controls |
| Diver Video Surface Control |
| Chamber Control Panel ( ML 1, TUP, HRC ) |
| Chamber Environment Control Panel |
| Un-Scrambler Communications Sets |
| Carbon Dioxide & Oxygen Analyzers for Chamber Monitoring |
| Closed Circuit Video System to Chambers |
| DIVING BELL 3 MAN |
| 2 x 60 m Diver umbilicals & 1 x Standby Diver Umbilical 1 |
| 2 x Divers Hat Mounted Colour Cameras & Lights |
| 2 x Bell Carbon Dioxide Scrubber |
| 1x Bell Heater ( Hot Water Unit ) |
| 2 x Diver Gas Reclaim ( DGRS) Panel |
| Bell / Diver Communications System |
| Onboard Emergency Gas Cylinders & Power battery |
| Thru Water Communications |
| Fixed Stand-off Frame |
| Hydraulic Bottom Door System |
| Internal & external lights |
| HYPERBARIC RESCUE CHAMBER ( HRC ) |
| Emergency Gas Cylinders & Power Battery 48 hours |
| 9 x Full Seat Harness & approved Safety Helmets. |
| 1 x Toilet, Shower, Wash Basin |
| 3 x HCU, 11 x BIBS, Communications, |
| 3 X Bunk Beds |
| Lifting Rigging and Towing Bridle |
| LIFE SUPPORT MACHINERY UNIT |
| Dual Diver Hot Water Unit (100% redundancy) |
| 3 x Chamber Environment Control Units |
| Chamber Potable Water Unit pre-set temperature |
| Air Driven Diver Gas Reclaim Surface Unit |
| Cooling Fans |
| POWER SUPPLY REQUIREMENTS |
| Main DDC & TUP 22.7 m3 |
| HRC 13.5 m3 |
| Bell 4.5 m3 |
| MAIN SKID |
| A - Frame & Bell Trolley |
| 6 - Man Living Chamber c/w 6 x Bunk Beds with
Mattresses, 7 x BIBS, 2 x HCU,
CO2 Scrubber, Medical Lock & Communications Transfer
Chamber (TUP) c/w 1 x Toilet, Shower, Wash Basin,
1 x HCU, 3 x BIBS, CO2 Scrubber & Communications. |
| WINCH SKID |
| Main Bell Winch ( Hydraulic 10 tonne Man riding ) |
| Guide Wire Winch ( Hydraulic 6 tonne double sheaved) |
| Bell recovery in water |
| Umbilical Sheave (Air) |
| OTHER EQUIPMENT |
| 20’ Store / Workshop Container |
| 260 m Bell Umbilical on powered reel |
| 3 x Ultra flow 500 reclaim hats |
| 2 x KMB 18B Band Mask |
| Deck Electrical / Gas Leads |
| Spreader Bar & Lifting Slings |
| HRC EMERGENCY CONTROL UNIT |
| Control panel |
| Communications & Analyzers |
| Environment Control Cooling |
| Supplied with Emergency Gas in separate racks |
| Supplied with Emergency Hook Up Umbilical |
| POWER SUPPLY REQUIREMENTS |
| Electrical Power Requirement 440 50 / 60Hz 250kVA |
| Emergency Generator 440 50 / 60Hz 250kVA |
| Compressed Air 400cfm,90 psi |
| Seawater 25 gpm Fresh Water 3 gpm |

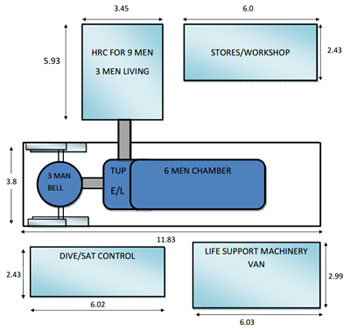

| DEDE-SAT -01 Saturation Diving System 200m-9 Men System/ 3 Men Bell |
| Equipment
Description |
Length(m) |
Width(m) |
Height(m) |
Weight(kgs) |
| Main chamber
including bell and
skid |
11.83 |
3.80 |
7.26 |
75000 |
| Hyperbaric Rescue
Chamber with Base
5.93 3.45 3.80 19000
Dive Control Van |
5.93
6.02 |
3.45
2.43 |
3.80
2.43 |
19000
7500 |
| Life Support
Machinery Van |
6.03 |
2.99 |
2.61 |
12000 |
| Store/ Workshop |
6.00 |
2.43 |
2.43 |
5000 |
| HRC Control Van |
3.00 |
2.50 |
2.40 |
4000 |
|
|
|
| |
|
