OUR RESOURSES
| Specification |
|
| Working Pressure (LP) |
400 PSIG |
| Depth Gauges |
2 ea. 6" dial Dual Scale 0-
250FSW/76MSW |
| Low Pressure Gauges |
1 ea., 0-400PSIG |
| Tubing |
1/4" Copper |
| Pneumo Valve |
1/4" Brass |
| LP Air Valve |
3/8" Brass |
| Check Valve |
3/8" Brass |
| LP Input Connector |
#8 JIC |
| Diver Output Connector |
#6 JIC |
| Pneumo Connector |
O2 |
| Dimensions |
|
| Height |
20in. (51.8cm) |
| Width |
14in. (35.5cm) |
| Depth |
12in. (30.4cm) |
| Weight 8120 (approx) |
36lbs. (16kg) |
| Weight 8200 (approx) |
45lbs. (20kg) |
AMRON 2 DIVER COMMUNICATION RADIO

| Radio Specification |
Model 2825A 2- Diver
Deluxe |
Model 2830A/24/26:
2830 w/DSP Helium
Speech Unscrambler |
Model 2825A/24/26:
2825w/Analog HSU |
| Power |
100/220 VAC, 50/ 60 Hz
(automatic), internal batteries 12
VCD. |
100/220 VAC, 50/ 60 Hz
(automatic), internal batteries
12 VCD. |
100/220 VAC, 50/ 60 Hz
(automatic), internal batteries 12
VCD. |
| Audio Power Output |
22 watts per Channel. |
22 watts per Channel. |
22 watts per Channel. |
| Frequency Response |
300Hz to 12Hz |
300Hz to 12Hz. |
300Hz to 12Hz. |
| Isolation Transformer |
Split Bobbin Medical Grade |
Split Bobbin Medical Grade |
Split Bobbin Medical Grade |
| Backup Battery |
|
12 VDC, Gel-cell (1 ea) |
12 VDC, Gel-cell (1 ea) |
| Expected Battery Life |
|
20 hours |
20 hours |
| Height |
9in. (22.9cm) |
9in. (22.9cm) |
9in. (22.9cm) |
| Width |
14.5in. (36.8cm) |
14.5in. (36.8cm) |
14.5in. (36.8cm) |
| Depth |
10.0in. (25.4cm) |
10.0in. (25.4cm) |
10.0in. (25.4cm) |
| Weight (approx) |
22lbs. (9.98 kg) |
22lbs. (9.98 kg) |
22lbs. (9.98 kg) |
BAUER H. P. COMPRESSORS (marine 250E – 3phase 440/380v
electric)
| SPECIFICTIONS |
|
| Operating pressure |
250 l/min |
| Operating pressure, final
pressure
safety valve |
225-330 bar |
| Weight |
120 kg |
| Compressor block |
IK120--F07 |
| Number of stages |
3 |
| Number of cylinders |
3 |
| Speed |
1,450 min--1 |
| Compressor block oil
capacity |
2.8 ltrs. |
| Max. permissible
operating height |
0 ... 2000 m above sea level |
| Drive motor |
Three phase squirrel cage |
| Operating voltage |
230/400 V, 50 Hz |
| Power |
4 kW(5,5 PS) |
| Speed |
2,815 min--1 |
| Consumption/h |
5.5 kWh |
| Operating voltage |
230/400 V, 60 Hz |
| Power |
5 kW (= 7,5 PS) |
| Speed |
3,380 min--1 |
| Consumption/h |
5.5 kWh |
| Operating voltage |
440 V, 60 Hz |
| Power |
5.5 kW (= 7,5 PS) |
| Speed |
2,840 min--1 |
| Consumption/h |
5.5 kWh |
BROCCO CUTTING SYSTEM
| SPECIFICTIONS |
|
| CABLE LENGTH |
50/100m |
| UMBLICAL |
DUNLOP AOZE -10 |
| MAX. WORKING
PRESSURE |
40 Kg/cm2 |
| ELECTRICAL EQUIPMENT
SPECIFICATION |
ESAB BUILDING CABLE 600
Amp. AS PER 1596501/90sq/
min. |
BUCKLEY’S CP METER
| SPECIFICATIONS |
|
| DISPLAY |
0.001 to 1.999v 3 ˝ digit LCD display |
| BATTERY CHARGER |
110-230v AC |
| OPERATING TEMPERATURE |
0-300c temperature stability 100ppm/0C |
| OPERATING DEPTH |
Up to 350m. |
| REFERECE ELECTRODE |
Silver/Silver chloride |
| WEIGHT |
In air 2.5kg , in water 0.85kg |
CONTAINERIZED DIVING SYSTEM WITH DECOMPRESSION CHAMBER
| SPECIFICATIONS |
|
| DESIGN PRESSURE |
135psig |
| HYDROSTATIC PRESSURE TEST |
203psig |
| SHELL |
SA-516 GR70 Steel |
| DECK PLATES |
Marine grade 6061-T6 non –skid aluminium |
| SKID |
Sturdy I-Beam w/lifting eyes and fork lift slots |
| VIEW PORTS |
4 10” DIAMETER (8” VIEWING) |
| PENETRATORS |
26ea. 316 L stainless steel with equalization penetrator
between locks |
| MANWAYS |
2 ea 3”diameter, O-ring sealed, double pvoting hinge , self
righting with “strong back” locking mechanism |
| PAINT |
Sandblasted to white metal , primed with inorganic zinc and
intermediate coat of epoxy. Final coat is semi – gloss
polyamide cured epoxy o inside and high gloss polyurethane
on outside |
| DIMENSIONLESS |
| INNER LOCK |
54 Dia. * 9ft Length |
| OUTER LOCK |
54 in dia *4ft length |
| OVERALL LENGTH |
13ft |
| OVERALL WIDTH |
63 in. (including cover) |
| HEIGHT |
72in. |
CYGNUS UNDER WATER THICKNESS METER
| SPECIFICATIONS |
|
| SIZE |
235 mm x 75 mm |
| WEIGHT |
950 g - with remote probe, 860 g - with fixed
head probe |
| OPERATING TEMP |
-10°C to +50°C |
| RESOLUTION |
0.1 mm OR 0.05 mm (selectable) |
| MATERIALS |
Sound velocities between 2000 m/s and
7000 m/s - Covers virtually all common
engineering materials. |
| ACCURACY |
±0.1 mm OR ±0.05 mm (selectable) |
| OPERATED DEPTH |
300m |
| ENVIRONMENTAL PROTECTION |
IPX8 Continuous 300m Rating |
| POWER |
NIMH rechargeable battery pack |
Diver Air Control Panel
MODEL 8225- HP
| Air Control Specifications |
|
| HP Supply Pressure- Std. Unit |
3000 PSIG |
| HP Supply w/DIN Adapter |
4500 PSIG |
| HP Inlet Valve |
2 ea. source select |
| HP Gauge |
0-5000 PSIG ± 1.5% |
| HP Check Valve |
2 |
| HP Yokes & Whips |
2 ea. 6 ft. blue and red |
| HP Regulator Inlet |
4500 PSIG |
| HP Regulator Outlet |
250 PSIG |
| HP In Line Filter |
50 micron |
| LP Input Fitting |
#6 JIC |
| Communications Specifications |
| Operating Voltage |
12 VDC |
| Power |
2 each 12VDC
Rechargeable Batteries or
External Power |
| Battery Life |
60 hours (approx) |
| Frequency Response |
300Hz to 7.5kHz |
| Audio Power |
22 watts per channel |
| Panel Specification |
| Panel Material |
Black polyester powder
coated over stainless &
aluminium |
| Graphics |
Red, white blue & yellow
silk-screened |
DIVING UMBILICAL
| SPECIFICATIONS |
|
| TEMPERATURE |
400F-1200F |
| NOMINAL ID |
3/8 in |
| NOMINAL OD |
.75 in |
| MIN. BURST |
4 TO 1 |
| SUCTION (in Hg) |
30 |
| WEIGHT 3/8” |
3/8”HOSE: 21 lbs per ft
˝”HOSE : 29lbs per ft |
HYDRAULIC TOOLS: (HYDRAULIC IMPACT WRENCH)
| SPECIFICATIONS |
16 |
24 |
| DRIVE SIZE |
1 in |
1-1/2 in sq dia |
| PRESSURE RANGE |
1500-2000 psi |
1800-2000 psi |
| FLOW RANGE |
7-12 gpm |
7-12 gpm |
| OPTIMUM FLOW |
8gpm / 30 lpm |
8gpm/30 lpm |
| OUTPUT SPEED |
2000rpm at 5 gpm |
2000rpm at 5 gpm |
| INPUT SPEED |
1200impact per min |
1200 impact per min |
| TORQUE |
1500-2500 ft-lb |
|
| SOUND PRESSURE LEVEL |
100.2 dBA |
|
INGERSOLL RAND L. P. COMPRESSORS
| SPECIFICATIONS |
|
| TANK |
1000ltrs |
| POWER |
10HP |
| MAXIMUM OPERATING
PRESSURE |
12Kg |
| RELIEF VALVE |
17kg |
| MOTOR |
20HP |
| |
KIRBY MORGAN
28 |
KIRBY MORGAN 37 |
KIRBY MORGAN SUPERLITE
57 |
| |
 |
 |
 |
| HELMET MODEL |
28 |
37 |
57 |
| WEIGHT |
12.73 pounds |
30.6 Pounds |
31.6 Pounds |
| CONSTRUCTION
HELMET SHELL |
FIBREGLASS,POLYSTER, RESINS, CARBON GEL OAT AND CARBON FIBRE |
| HARDWARE |
STAINLESS STEEL, CHROMED BRASS, POLISHED BRASS, POWDER COATED AND ANODIZED ALUMINIUM |
| CONTROL KNOBS |
ABS PLATIC |
| LENS/FACE PORT |
CLEAR POLYCARBONATE |
| NECK DAM |
|
NEOPRENE
ADJUSTABLE NECK PAD |
LOCKING COLLAR LATCH SYSTEM
FOUR WAY LOCKING SYSTEM
EXTERNALLY ADJUSTABLE CHIN STRAP |
| HEAD CUSHION |
|
NYLON BAG FILLED WITH #4 POLYSER FOAM |
MOUNT BRACKETS
FOR ACCESSORIES |
|
NONE, HANDLE CAN BE DRILLED FOR MOUNTING |
| RECOMMENDED
LUBRICANTS |
Dow Corning MS 4 Silicone Lubricant, Krytox and Halocarbon |
| OPERATING
PRESSURE THROUGH
LP COMPRESSOR |
220 – 225 PSI |
| AIR PRESSURE
DELIVER TO DIVER |
127 PSI. |
LAUNCH AND RECOVERY SYSTEM
| SPECIFICATIONS |
|
| TYPE OF WINCH |
Hydraulic |
| SAFE WORKING LOAD |
2 ton |
| A-FRAME |
Hydraulic |
| WINCH |
Hydraulic
|
| LENGTH |
14ft
|
| WIDTH |
6ft 4in
|
| FRAME |
I-BEAM (150*75 mm)
|
| MOC |
CARBON STEEL
|
STANLEY HYDRAULIC POWER PACK
| SPECIFICATIONS |
|
| ENGINE |
18 hp Briggs / 20 hp Honda |
| CAPACITY |
One 5 gpm/19 lpm Circuit or One 8 gpm/30 lpm
Circuit |
| WEIGHT (WET): SINGLE CIRCUIT
BRIGGS |
330 lbs / 149.6 kg |
| FUEL TANK CAPACITY |
7 gal. / 26.5 ltr |
| ESTIMATED GAS CONSUMPTION PER
HOUR |
1.3 gal / 4 ltr
|
| HYDRAULIC RESERVOR CAPACITY |
3 gal. / 11 ltr |
| RELIEF VALVE "CRACK" SETTING |
2100 psi / 145 b |
| FULL RELIEF SETTING |
2500 psi / 172 bar |
UNDER WATER DIGITAL CAMERA
| SPECIFICATIONS |
|
| WEIGHT |
60z (.2kg) DRY, 3 oz (.08kg)WET |
| DEPTH RATING |
1000FT (300m) |
| IMAGE DEVICE |
1/3” CCD SENSOR (768*49V) |
| SENSITIVITY |
.01 LUX @ f 1.4 |
| RESOLUTION |
480 TV Lines std. |
| POWER |
12VDC @ 200ma |
| LENS |
3.6MM, ELECTRONIC |
| FOCUS |
FIXED, 4” TO INFINITY |
| ANGLE OF VIEW |
70 Horz (IN WATER) |
UNDERWATER CCTV SYSTEM, COMPLETE COLOR VIDEO SYSTEM WITH
AC LIGHT
| VIDEO MONITOR |
9”High resolution TFT color screen |
| RECORDER |
Digital high video |
| UMBILICAL CONNECTOR |
14 way cannon connector) |
| SUPPLY VOLTAGE |
12Vdc @6amps and 90-270vac(50 or 60 Hz) |
| CAMERA SUPPLY |
24 V dc@ 2Amps |
| LIGHTNING |
Maximum light specifications is 24V. |
| CAMERA |
|
| LENS |
4.3mm (6mm optional) |
| SUPPLY VOLTAGE |
12-24 volts DC regulated |
| OPERATING DEPTH |
1000m standard (2000m optional) |
| VIDEO BANDWIDTH |
<5MHz |
| SCANNING SYTSTEM |
2:1 interface PAL or NTSC |
| LIGHT |
|
| MATERIAL |
Anodized aluminium |
| VOLTAGE |
12 VDC standard |
| WATTS |
35w standard |
| BEAM |
400 |
| MOUNTING SCREW |
M6 |
PCDS VIDEO CABLE: COMPOSITION:
- 75 ohm mini coax. line
- Polyurethane outer jacket
- Drain wire
ELECTRIC CHARACTERISTIC AT 200C
- Capacitance: 57m(+ or -)3pP/m
- 1.0mm2 conductor DC resistance 19.5 ohms/km
VIDEO OVERLAY SUITE
- LED display on keyboard for page
- Touch pad, water proof to enter text
- 10 page on screen text generator
UNDERWATER MAGNETIC PARTICLE UNIT
DIMENSIONS
- Battery Housing/Control Unit 19cms deep x 13cms deep x 27cms high
- Ultraviolet Lamp 11cms diameter x 18.5cms long
- Ink Dispensing Unit 20cms diameter x 27cms high – capacity 3.5 litres
DEPTH RATING
Battery
Housing/Control Unit |
600 ft in sea water – individually tested. |
| Ultraviolet lamp |
600 ft in sea water – individually tested and certified. Special lamps can be
provided for depths in excess of 600ft. |
2.0 TECHNICAL DESCRIPTION
| Electric supply |
12 V DC supplied from 6.5 or 12 Ah rechargeable battery |
| Battery/ Control Unit |
Houses rechargeable battery plus electronic circuits for control of U/V lamp.
Underwater mate able connections provided for electromagnetic yoke and for
U/V lamp; ON/OFF switch for lamp, vent and purge connections for connection
for use during battery charging operations. |
| Ultraviolet Lamp |
12V, 35 watt gas discharge lamp with enhanced U/V content U/V intensity in
excess of 250lux at 500mm. Fluorescent ink dispensing nozzle built into lamp
handle |
| Electromagnetic Yoke |
12V DC operation with fully articulated legs – power >22 kg pull. |
| Ink Dispenser |
3.5 litre capacity containers fitted with 2 ‘quick release’ connections for ink
dispensing and for air pressure relief valve set at 5psi. |
WELDING RECTIFIER
| SPECIFICATIONS: |
|
| HT TRANSFORMER |
3000V |
| LT TRANSFORMER |
24V |
| WELDING CABLE |
100Mton |
| SUPPLY VOLT |
380/440 |
| PHASE |
03 |
HELIUM GAS CYLINDERS USED IN MIXD GAS DIVING
AIR QUADS
BAIL OUT BOTTLE
 |

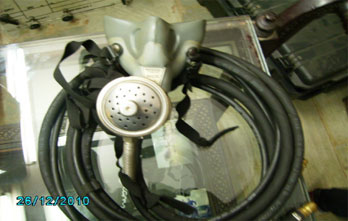

BIBS (BUILT IN BREATHING SYSTEM):
 |
|
|
|
| |
|
